CCtalk Kiosk5 Interface Board,Coin Acceptor or Note Validator, support third parties Kiosk Software or Internet Cafe
Software with CCtalk protocol, It can convert PC into coin operated or bill operated Internet
kiosk or internet cafe.
installation with SiteKiosk Software:
- Download and install the
USB driver if
install on windows (XP, Vista, windows 7)
- Download the
SiteKiosk Software install it and
- Run the Configure SiteKiosk
- Find Plus-/Payment Bundle->Payment Device and click it.
Interface:cctalk and click it. you can see the configuration menu, check
Enable Box and Activation automatic search
- After click Search, you can get the default value setting from coin
acceptor bill acceptor
- You can change the description and values for all the channels
according to your coin acceptor or/and bill acceptor.
Channel 1-8 is default for pulse output Coin acceptor and Channel 9-16 is
default for pulse output bill acceptor.
Channel 1-8 is for second pulse output device 1, either bill acceptor
or coin acceptor or other pulse output device, The
default is coin acceptor.
The values for channel 7-8 have to be channel 1's value X channel
number, for example channel 3 's value 0.75 is channel 1's value 0.25 X
Channel 9-16 is for second pulse output device
2, either bill acceptor or coin acceptor
or other pulse output device, The
default is bill acceptor.
The values for channel 10-16 have to be channel 9's value X (channel
number-8), for example channel 11 's value
3.00 is channel 9 's
value 1.00 X 3 =3.00
|KIOSK5 supports CCtalk
Protocol, can interface with any coin acceptor or/and bill acceptor has
It does not need power source, It get
power from PC's USB
download USB driver
Board Only US$99
1 unit US$249 plus US$45 for 3-6 business
days shipping guaranteed please add extra U$20 shipping cost for each

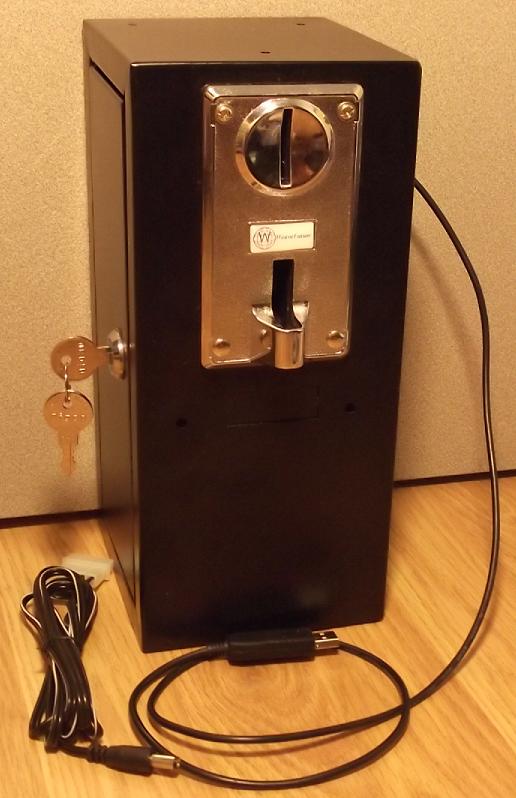

Molex-12 is PC Hard driver power
adapter cable, using it will power off the coin acceptor when the PC is power off
1 unit US$239 plus shipping & handing (6-10 business day US$112 )
(4-6week shipping US$65)please add extr1 unit US$229 plus shipping & handing (6-10 business day US$112 )
please add extra U$55 shipping cost for each additional unit.
1 unit US$359 plus US$45 for 3-6
business days guaranteed shipping
please add extra US$20 shipping cost for each
1 unit US$359 plus shipping & handing (6-10 business day US$119 )
please add extra US$60 shipping cost for each
additional unit. Please email us your address for accurate shipping cost to
